Ford

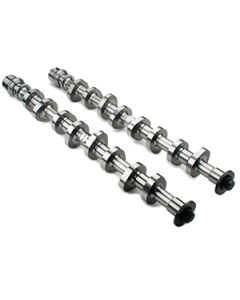

Custom Camshaft Ford 4.6 Modular (Pair) Learn More

Ford - 4.6L & 5.4L 2 Valve Late Model
Performance level - Stage 1 - Excellent for stock replacement. No other modifications required.
INT/EXH - Dur @ .050” Lift: 200°/204° RR: 1.8/1.8 Gross Lift: .540”/.549” LSA: 114° RPM: Idle to 5500 Redline: 6000 Note: All Crower 4.6L & 5.4L Camshafts require 86053 cam bolts. Stock cam bolts will not work with these aftermarket camshafts. Learn More

Ford - 4.6L & 5.4L 2 Valve Late Model
Performance level - Stage 2 - Hot street profile. Emphasis on mid range. Spring recommended.
INT/EXH - Dur @ .050” Lift: 208°/212° RR: 1.8/1.8 Gross Lift: .559”/.570” LSA: 114° RPM: 1250 to 6000 Redline: 6500 Note: All Crower 4.6L & 5.4L Camshafts require 86053 cam bolts. Stock cam bolts will not work with these aftermarket camshafts. Learn More

Ford - 4.6L & 5.4L 2 Valve Late Model
Performance level - Stage 3 - Street/strip profile. Emphasis on top end power. Spring required.
INT/EXH - Dur @ .050” Lift: 220°/224° RR: 1.8/1.8 Gross Lift: .590”/.601” LSA: 114° RPM: 1750 to 6750 Redline: 6750 Note: All Crower 4.6L & 5.4L Camshafts require 86053 cam bolts. Stock cam bolts will not work with these aftermarket camshafts. Learn More

Ford - 4.6L & 5.4L 2 Valve Late Model
Performance level - Stage 2 - Designed specifically for supercharger applications for street use.
INT/EXH - Dur @ .050” Lift: 216°/216° RR: 1.8/1.8 Gross Lift: .581”/.581” LSA: 114° RPM: 1500 to 6500 Redline: 6500 Note: All Crower 4.6L & 5.4L Camshafts require 86053 cam bolts. Stock cam bolts will not work with these aftermarket camshafts. Learn More

Ford - 4.6L & 5.4L 2 Valve Late Model
Performance level - Stage 3 - Designed specifically for supercharger applications for street/strip.
INT/EXH - Dur @ .050” Lift: 228°/228° RR: 1.8/1.8 Gross Lift: .612”/.612” LSA: 114° RPM: 2000 to 6900 Redline: 6900 Note: All Crower 4.6L & 5.4L Camshafts require 86053 cam bolts. Stock cam bolts will not work with these aftermarket camshafts. Learn More

Ford - 4.6L & 5.4L 2 Valve Late Model
Performance level - Stage 4 - Race grind. ECU mods and tuning required. Rough idle is common.
INT/EXH - Dur @ .050” Lift: 228°/232° RR: 1.8/1.8 Gross Lift: .612”/.621” LSA: 114° RPM: 2250 to 7000 Redline: 7000 Note: All Crower 4.6L & 5.4L Camshafts require 86053 cam bolts. Stock cam bolts will not work with these aftermarket camshafts. Learn More
