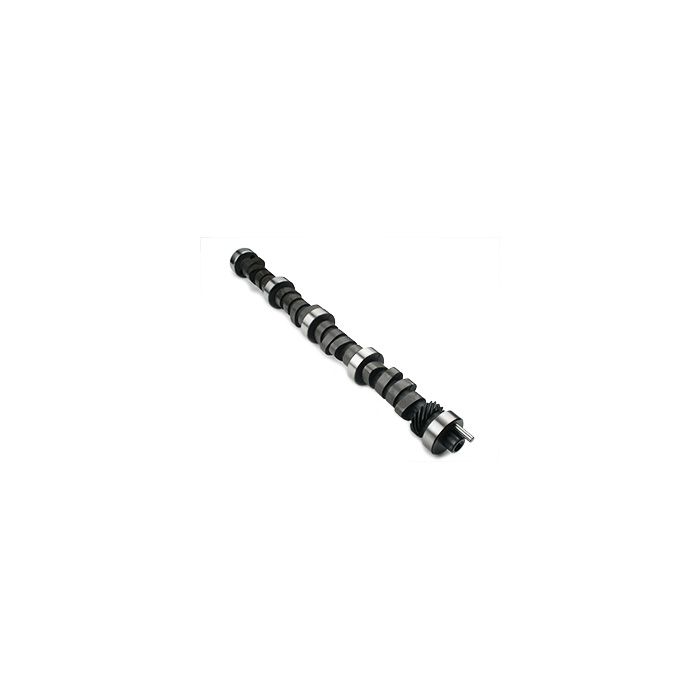

Ford Hydraulic Flat Tappet Camshaft
In stock
SKU
15922
Ford - 221, 255 (4.2L), 260, 289 & 302
Performance level 4 - Hi-Draulic Hauler - Lope at idle. Hot street/ strip cam with strong mid-range power.
INT/EXH - Dur @ .050” Lift: 220°/228° RR: 1.6/1.6 Gross Lift: .491”/.512” LSA: 108° RPM: 2200 to 6200 Redline: 6500
Performance level 4 - Hi-Draulic Hauler - Lope at idle. Hot street/ strip cam with strong mid-range power.
INT/EXH - Dur @ .050” Lift: 220°/228° RR: 1.6/1.6 Gross Lift: .491”/.512” LSA: 108° RPM: 2200 to 6200 Redline: 6500
$243.66
Part Number
15922
Engine Make
Ford
Year
1963-1995
Part Class
Camshaft
Camshaft Name
Hi-Draulic Hauler
Camshaft Series
Hi-Draulic Hauler
Engine Type
V8
Engine Size
221, 255 (4.2L), 260, 289 & 302
Product Type
Hydraulic Flat Tappet
Valve Lash
.000" intake and .000" exhaust
Lobe center
108
Advertised Duration: Intake / Exhaust
274/284
Duration @ .050" Lift: Intake / Exhaust
220/228
Lobe Lift: Intake / Exhaust
.307/.320
Rocker Ratio: Intake / Exhaust
1.6/1.6
Gross Valve Lift: Intake / Exhaust
.491/.512
CID
302
Performance Level
4
Low RPM
2200
Peak HP
6200
Redline
6700
Performance Description
Lope at idle. Hot street/ strip cam with strong mid-range power.
Engine Application
Level 4 camshafts are designed for heavily modified engines. They have a definate lope at idle and are best suited for dual purpose hot street/drag strip, hot marine and oval track applications.
Recommended Modifications
Headers, dual exhaust, large cfm carburetor, performance ignition and increased compression of 10.25:1 and above is required. Cylinder head modifications would be beneficial. Use with automatic transmission with high stall torque converter or manual transmission. Close attention to proper ring and pinion gear set and tire diameter is imperative.
Grind Number
274HDP
