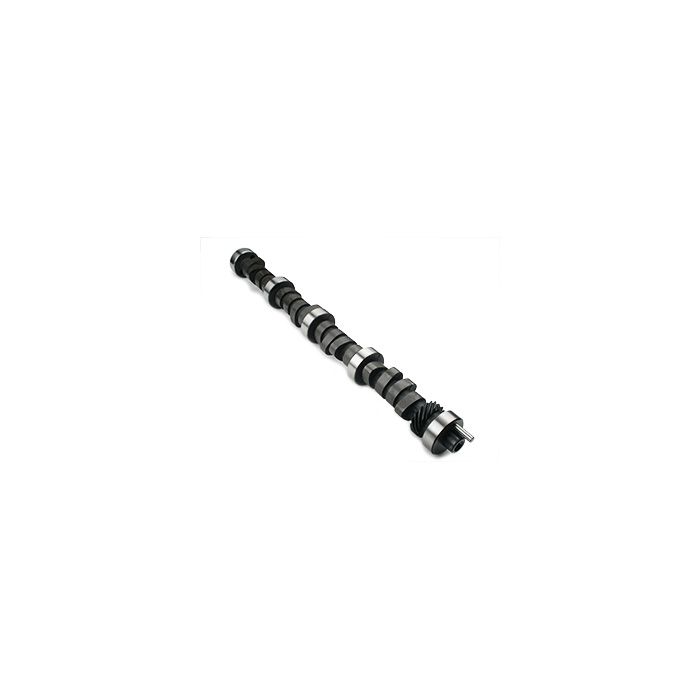

Ford Hydraulic Flat Tappet Camshaft
In stock
SKU
15930
Ford - 221 255 (4.2L) 260 289 302
Performance level - Supercharger - Designed for B&M/Roots type supercharged street/ strip and marine. Emphasis on upper bottom to top end power.
INT/EXH - Dur @ .050” Lift: 228°/228° RR: 1.6/1.6 Gross Lift: .464”/.464” LSA: 114° RPM: 2400 to 6500 Redline: 6500
Performance level - Supercharger - Designed for B&M/Roots type supercharged street/ strip and marine. Emphasis on upper bottom to top end power.
INT/EXH - Dur @ .050” Lift: 228°/228° RR: 1.6/1.6 Gross Lift: .464”/.464” LSA: 114° RPM: 2400 to 6500 Redline: 6500
$243.66
Part Number
15930
Engine Make
Ford
Year
1963-1995
Part Class
Camshaft
Camshaft Name
Supercharger
Camshaft Series
Supercharger
Engine Type
V8
Engine Size
221 255 (4.2L) 260 289 302
Product Type
Hydraulic Flat Tappet
Valve Lash
.000" intake and .000" exhaust
Lobe center
114
Advertised Duration: Intake / Exhaust
288/288
Duration @ .050" Lift: Intake / Exhaust
228/228
Lobe Lift: Intake / Exhaust
.290/.290
Rocker Ratio: Intake / Exhaust
1.6/1.6
Gross Valve Lift: Intake / Exhaust
.464/.464
CID
289
Low RPM
2400
Peak HP
6500
Redline
7000
Performance Description
Designed for B&M/Roots type supercharged street/ strip and marine. Emphasis on upper bottom to top end power.
CID #2
302
Performance Description 2
Designed for B&M/Roots type supercharged street/ strip and marine. Emphasis on upper bottom to top end power.
Grind Number
288HC
