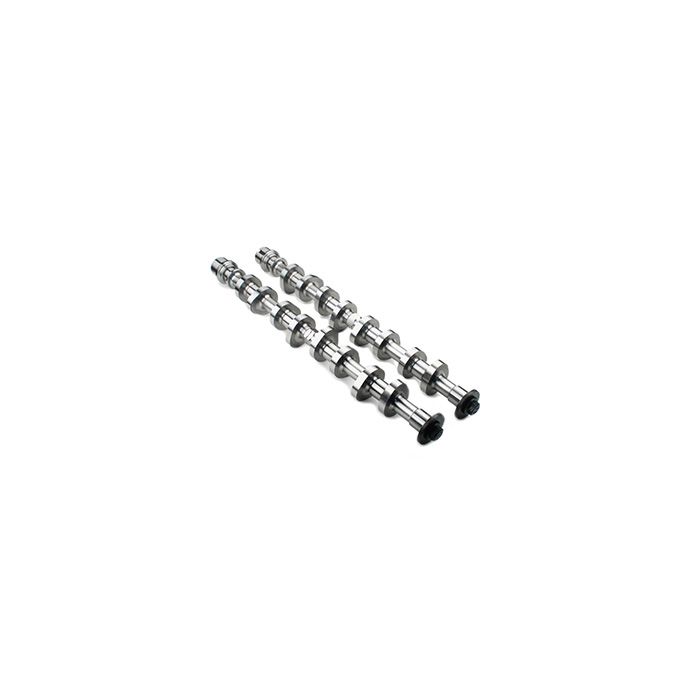

Ford Modular Camshafts
In stock
SKU
62811-2
Ford - 4.6L & 5.4L 2 Valve Early Model
Performance level - Stage 2 - Hot street profile. Emphasis on mid range. Spring recommended.
INT/EXH - Dur @ .050” Lift: 204°/208° RR: 1.8/1.8 Gross Lift: .532”/.532” LSA: 114° RPM: 1500 to 6000 Redline: 6500 Note: All Crower 4.6L & 5.4L Camshafts require 86053 cam bolts. Stock cam bolts will not work with these aftermarket camshafts.
Performance level - Stage 2 - Hot street profile. Emphasis on mid range. Spring recommended.
INT/EXH - Dur @ .050” Lift: 204°/208° RR: 1.8/1.8 Gross Lift: .532”/.532” LSA: 114° RPM: 1500 to 6000 Redline: 6500 Note: All Crower 4.6L & 5.4L Camshafts require 86053 cam bolts. Stock cam bolts will not work with these aftermarket camshafts.
$1,061.63
Related Products
Check items to add to the cart or
Part Number
62811-2
Engine Make
Ford
Year
1994-1998
Part Class
Camshaft
Camshaft Name
Stage 2
Camshaft Series
Original
Engine Type
V8
Engine Size
4.6L & 5.4L 2 Valve Early Model
Valve Lash
.000" intake and .000" exhaust
Lobe center
114
Advertised Duration: Intake / Exhaust
252/256
Duration @ .050" Lift: Intake / Exhaust
204/208
Lobe Lift: Intake / Exhaust
.296/.296
Rocker Ratio: Intake / Exhaust
1.8/1.8
Gross Valve Lift: Intake / Exhaust
.532/.532
Low RPM
1500
Peak HP
6000
Redline
6500
Performance Description
Hot street profile. Emphasis on mid range. Spring recommended.
Recommended Kit #1
84706
Recommended Kit #2
84707
| Unit | Pair |
|---|
