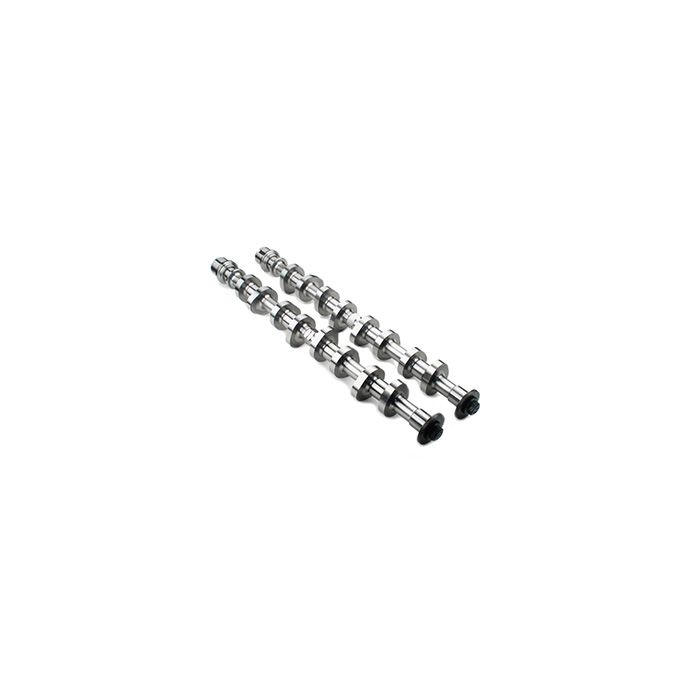

Ford Modular Camshafts
In stock
SKU
62813-2
Ford - 4.6L & 5.4L 2 Valve Early Model
Performance level - Stage 3 - Street/strip profile. Emphasis on top end power. Spring required.
INT/EXH - Dur @ .050” Lift: 216°/216° RR: 1.8/1.8 Gross Lift: .527”/.527” LSA: 114° RPM: 2000 to 6750 Redline: 6750 Note: All Crower 4.6L & 5.4L Camshafts require 86053 cam bolts. Stock cam bolts will not work with these aftermarket camshafts..
Performance level - Stage 3 - Street/strip profile. Emphasis on top end power. Spring required.
INT/EXH - Dur @ .050” Lift: 216°/216° RR: 1.8/1.8 Gross Lift: .527”/.527” LSA: 114° RPM: 2000 to 6750 Redline: 6750 Note: All Crower 4.6L & 5.4L Camshafts require 86053 cam bolts. Stock cam bolts will not work with these aftermarket camshafts..
$1,061.63
Related Products
Check items to add to the cart or
Part Number
62813-2
Engine Make
Ford
Year
1994-1998
Part Class
Camshaft
Camshaft Name
Stage 3
Camshaft Series
Original
Engine Type
V8
Engine Size
4.6L & 5.4L 2 Valve Early Model
Valve Lash
.000" intake and .000" exhaust
Lobe center
114
Advertised Duration: Intake / Exhaust
262/262
Duration @ .050" Lift: Intake / Exhaust
216/216
Lobe Lift: Intake / Exhaust
.293/.293
Rocker Ratio: Intake / Exhaust
1.8/1.8
Gross Valve Lift: Intake / Exhaust
.527/.527
Low RPM
2000
Peak HP
6750
Redline
7250
Performance Description
Street/strip profile. Emphasis on top end power. Spring required.
Recommended Kit #1
84706
Recommended Kit #2
84707
| Unit | Pair |
|---|
