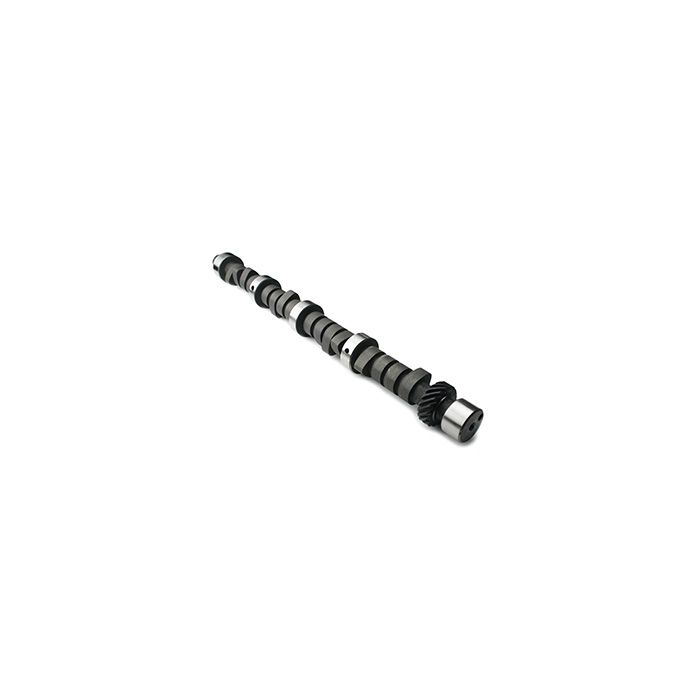

Mopar Hydraulic Flat Tappet Camshaft

Chrysler/Dodge/Mopar

1967-up

Camshaft

Ultra Beast

Beast

V8

273, 340, 360 & 318 LA

Hydraulic Flat Tappet

.000" intake and .000" exhaust

112

269/282

223/234

.320/.329

1.5/1.5

.480/.494

318

3

2000

4800

6200

Upper mid-range to top end power. Emphasis on top end.

Level 3 camshafts are designed for moderately modified engines. Intended for performance hot street/strip and performance marine applications.

These higher lift and longer duration camshafts demand close attention to rear end gearing and tire diameter combinations. The secret here is to pick a ring and pinion gear set and tire diameter that keeps the engine in its optimum rpm power range. Automatic transmissions with an aftermarket high stall torque converter and manual transmissions. Headers, dual exhaust, larger than stack carburetor, performance manifold and increased compression (9.5:1 to 10.5:1) are required. Mild porting and larger valves will improve performance.

360

3

Upper mid-range to top end power. Emphasis on top end.

Level 3 camshafts are designed for moderately modified engines. Intended for performance hot street/strip and performance marine applications.

These higher lift and longer duration camshafts demand close attention to rear end gearing and tire diameter combinations. The secret here is to pick a ring and pinion gear set and tire diameter that keeps the engine in its optimum rpm power range. Automatic transmissions with an aftermarket high stall torque converter and manual transmissions. Headers, dual exhaust, larger than stack carburetor, performance manifold and increased compression (9.5:1 to 10.5:1) are required. Mild porting and larger valves will improve performance.

269H

84031
